2 Line GP Shielded Room Filters

6 Amp, 2 Line GP Shielded Room Filter

6 Amp- 2 Line GP Shielded Room Filter
Weight:
3 kg
Availability:
6 - 8 weeks
Manufacturer:
Total EMC Products Ltd
Application:
Shielded enclosures/IT installation/Computer rooms
Manufacturer Part No:
006/2/GP/*
Product Size:
See Datasheet
Download:
1052929B.pdf

Standard Data:
  • High current capability - Micro size
  • High common & differential mode insertion loss
  • Improved low frequency performance
  • Optional input transient suppression to suit application
Technical Data:
  • Current Rating: 6 Amp
  • Voltage: 230 - 520V AC
  • No of Lines: 2
  • Frequency: 50 – 60Hz
  • Attenuation: Medium – Very High
The GP (general performance) filter range are designed and tested for shielded room requirements, for attenuation from 100kHz – 1GHz at 60dB.
This range of filters will also keep attenuating up to 40GHz and beyond.
Shielded rooms require high levels of attenuation to ensure no conducted / radiated emissions are either imported or exported from the room.

The filters come in 2, 3 or 4 line formats and have current ratings up to 3000Amps per phase. Transient suppression can be added as an option to the filters to give protection against induced transients from EMP sources.

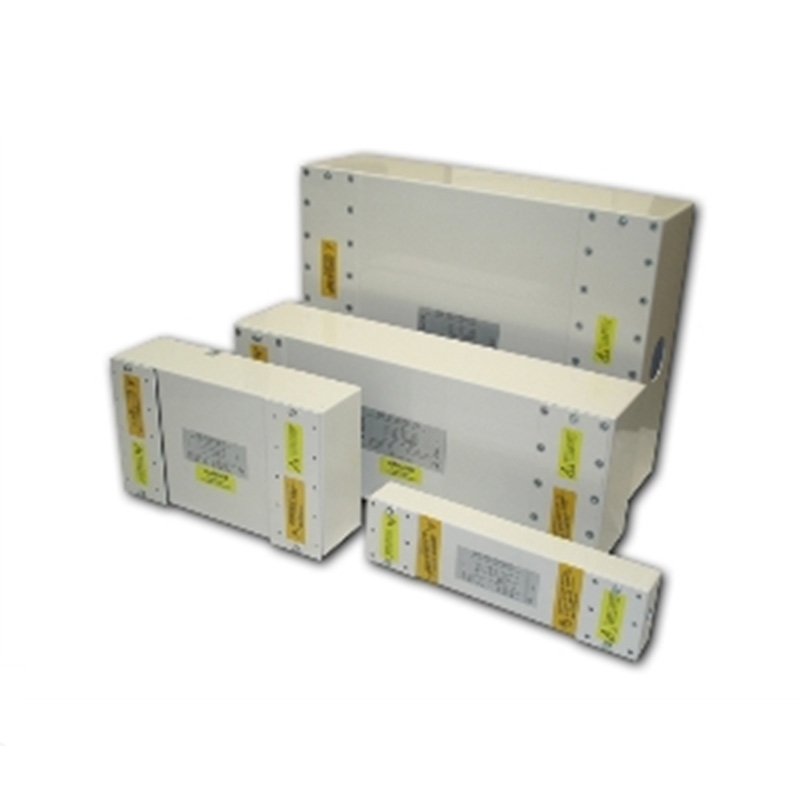

The filters are housed in steel enclosures that are then painted RAL 9001 for protection.

Custom options for this product are available, please see datasheet.

Please get in contact for details on delivery and returns.

Please refer to the datasheet for dimensional data on this product.
