GP Shielded Room Filters

The GP (general performance) filter range are designed and tested for shielded room requirements, for attenuation from 100kHz – 1GHz at 60dB, this range of filters will also keep attenuating up to 40GHz and beyond.

Shielded rooms require high levels of attenuation to ensure no conducted / radiated emissions are either imported or exported from the room.

The filters come in 2, 3 or 4 line formats and have current ratings up to 3000Amps per phase. Transient suppression can be added as an option to the filters to give protection against induced transients from EMP sources.

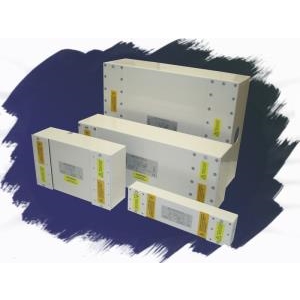

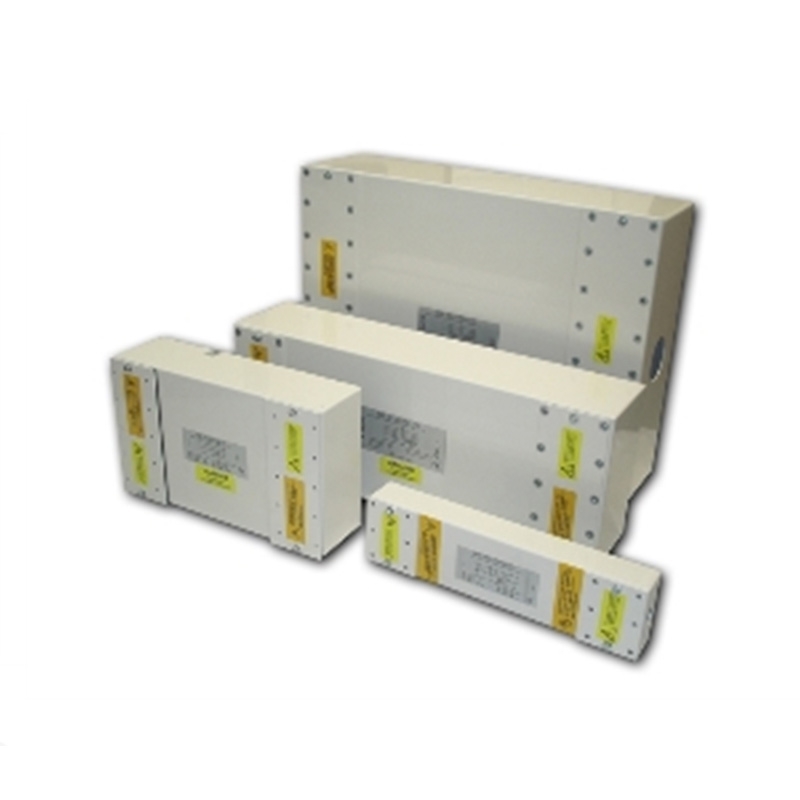

The filters are housed in steel enclosures that are then painted RAL 9001 for protection.
