Budget Chassis Mount Filters

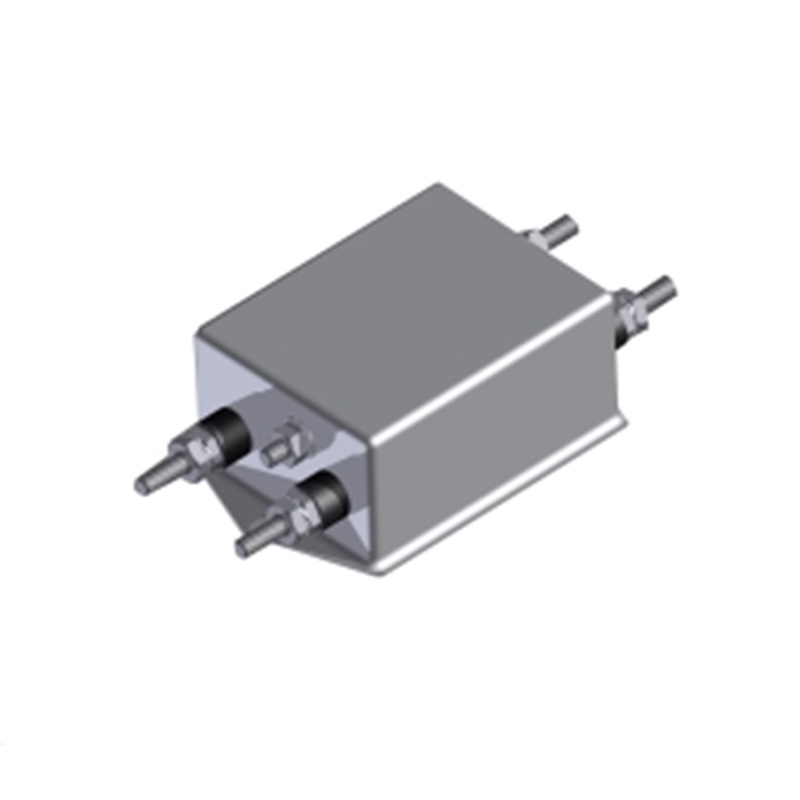

10A Chassis Mount AC EMC/EMI Mains Filter (T2010)

T2010 range chassis mount
Weight:
0.2 kg
Availability:
4 - 6 weeks
Manufacturer:
Total EMC Products Ltd
Application:
IT equipment, Power supplies, Laptop computers.
Product Size:
See datasheet
Download:

Standard Data
  •          Micro size
  •          International approvals


The T2010 range of filters are an innovative development and has been designed to ensure EMC compliance for various equipment applications in particular for IT equipment.  Its physical compactness along with its outstanding performance in attenuation of unwanted interference makes this range unique. The In-line design allows ease of application and installation including retro fitting.



The T2010 filter series is a single stage device with effective attenuation characteristics at low frequencies.  The housing is plated mild steel and the filter is encapsulated within this surround.  This allows the unit to be securely mounted.



This filter is available in a range of current ratings 1A and 60A.  This makes it a very compact multi-application unit providing the ultimate attenuation package.



Delivery and returns info

Technical Data
  •          Current Rating: 10A
  •          Voltage: 115 -230V AC
  •          Frequency: 50 – 60Hz
  •          Attenuation: Low
